DigiClam

Specifications

Firmware

Demo Video

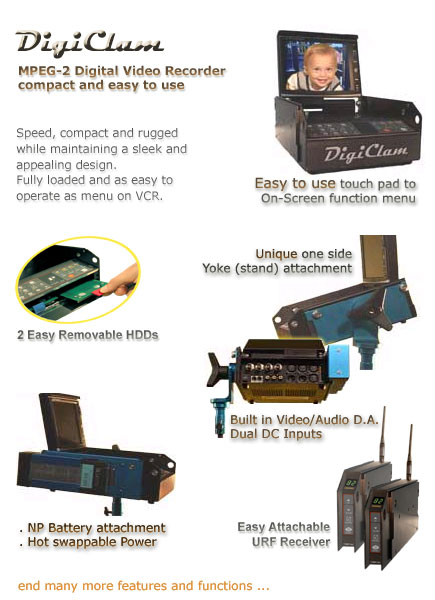

		MAIN FEATURES

		Rugged mini-size: 7.5" x 10" x 3.5" (19 x 25.4 x 9)cm
		Broadcast quality MPEG-2 Recording and Playback
		Programmable compression ratio for optimum quality
		Anamorphic 2.35:1, 16:9, 4:3 Selectable Aspect Ratio*
		Instant Replay on Normal/ Slow/ Fast/ Freeze Playback
		Playback of any fps ±1fps - ±1200fps
		Playback is based on Transfer speed; PAL-25fps, NTSC-30fps, FILM-24fps
		Auto sensing NTSC/PAL, NTSC & PAL content on same HDD
		USB-2 & IEEE 1394 interface to external storage devices*
		Removable HDD *- Up to 3 HDDs with this option
		In and Out take marking on a fly
		Play list of selected takes*
		Loop takes/clips
		Simple VCR like operation with On Screen Display
		Up to 150hrs on 40Gb HDD
		Delete takes/clips
		Remote Control and Daisy-Chain multiple DigiClam's
		Build in Hi-brightness 6.8'' LCD
		Built in HEADPHONE Jack
		Built in video/audio distribution amplifier
		Built in video/audio 2 in 3 OUT matrix switcher*
		Built in Color Bar Generator
		Input/Output Audio Control Levels
		Sound cutoff to external monitor during recording
		Low battery and HDD space warning
		Two DigiClams ATTACHED - Fits in a 19'' Rack Drawer
		* - Optional or coming soon
